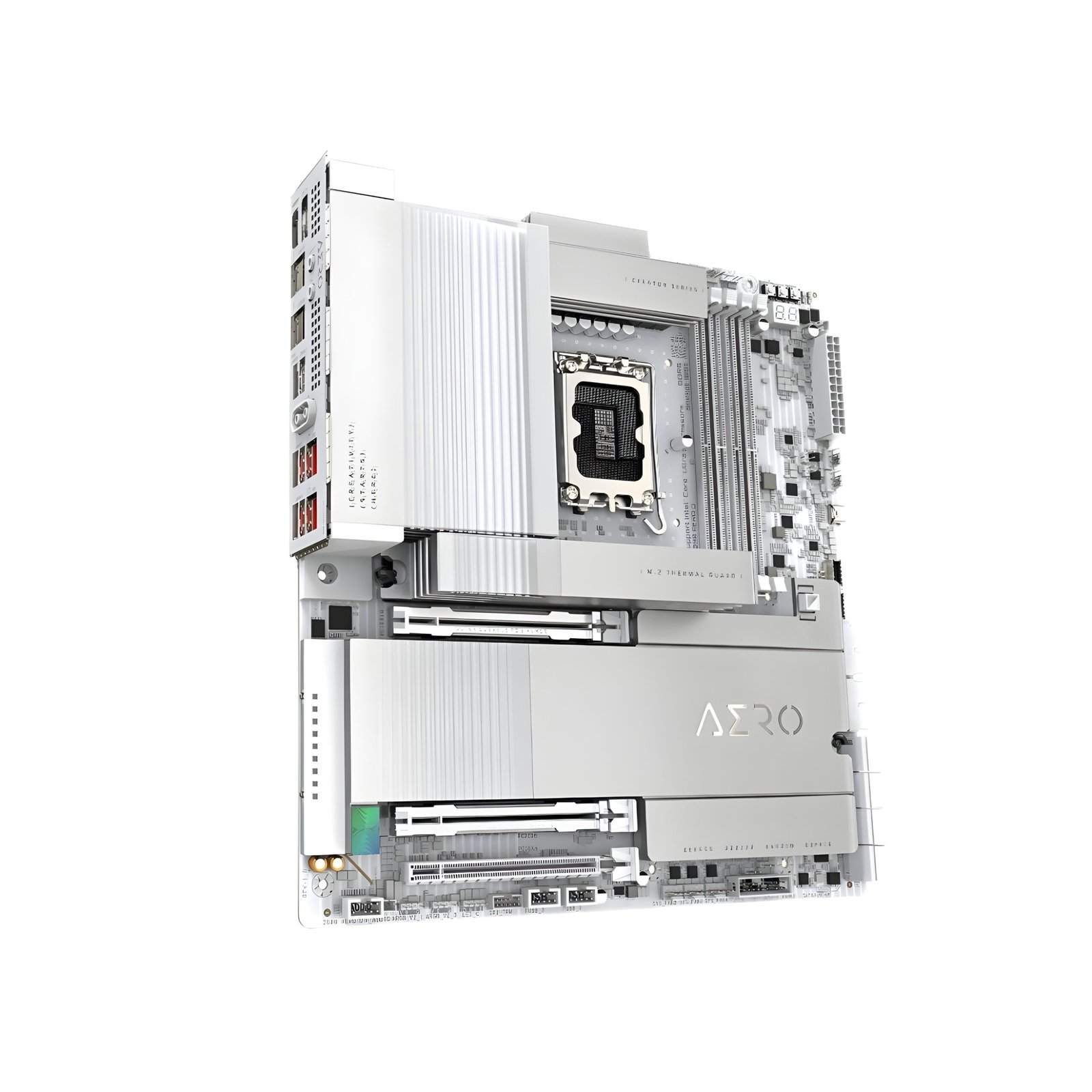

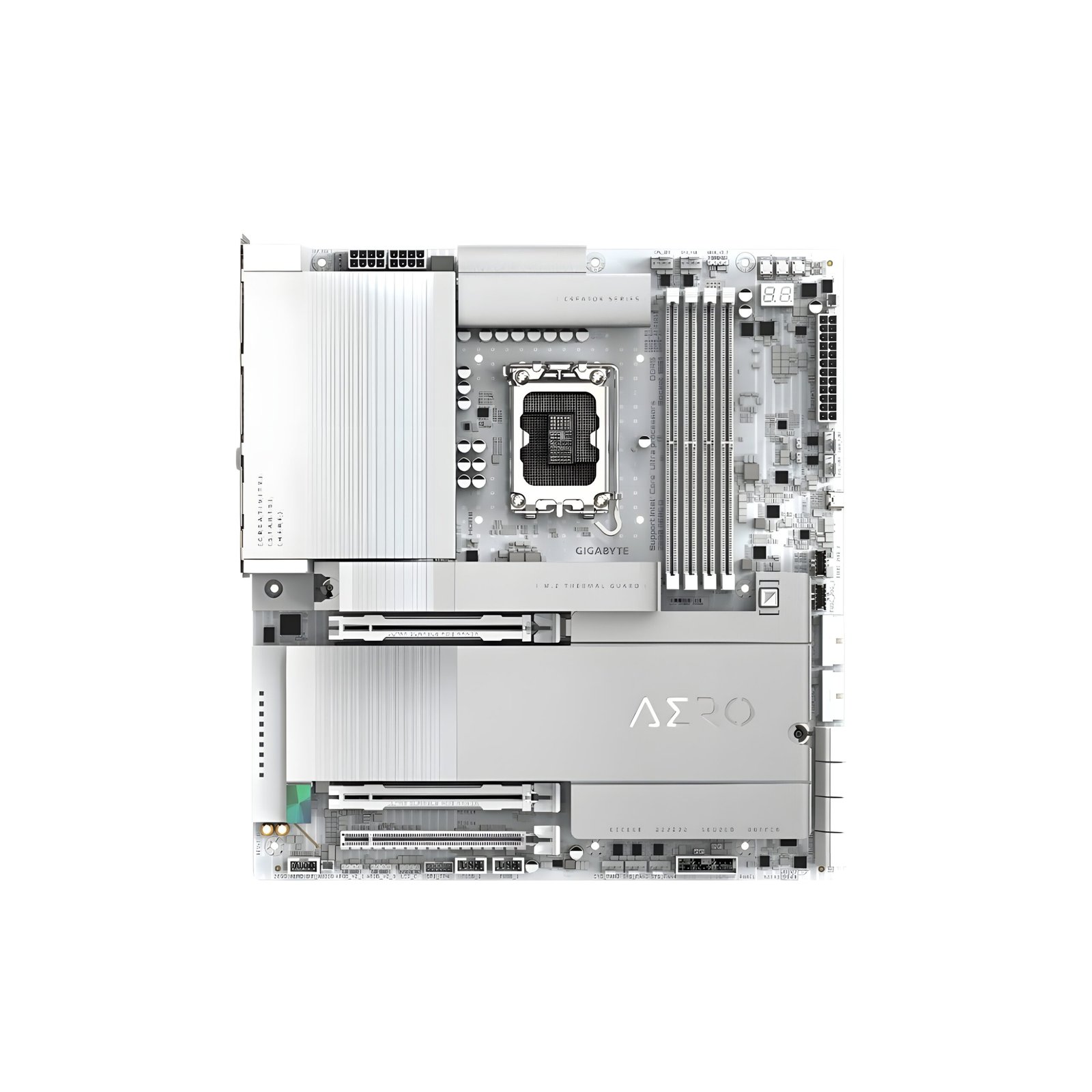

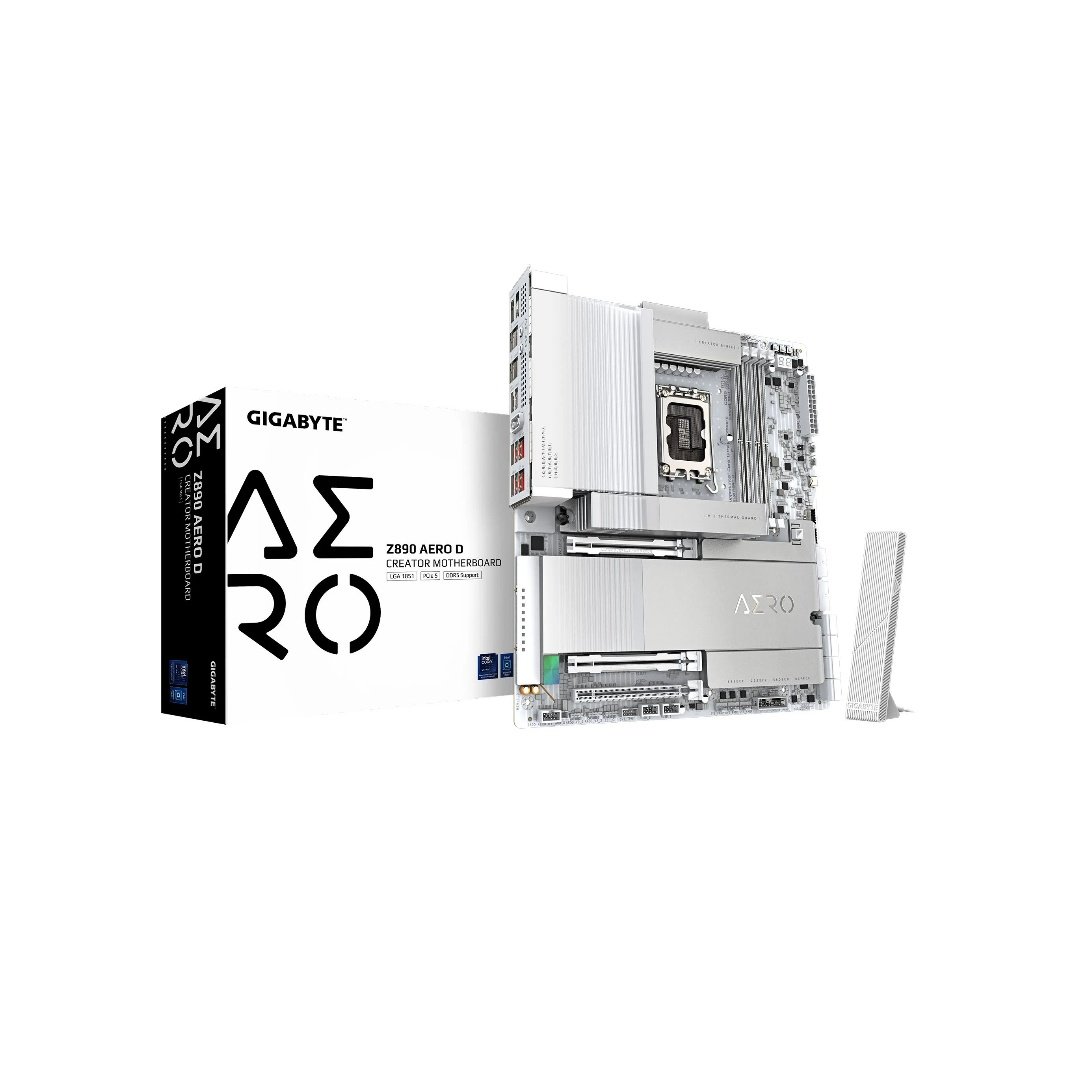

GIGABYTE Z890 AERO D Motherboard Supports Intel Core Ultra CPUs 16+1+2 phases VRM
GIGABYTE Z890 AERO D Motherboard Supports Intel Core Ultra CPUs 16+1+2 phases VRM
-33%
GIGABYTE Z890 AERO D Motherboard Supports Intel Core Ultra CPUs 16+1+2 phases VRM
Original price was: ₹84,000.00.₹55,999.00Current price is: ₹55,999.00.
| BRAND | Gigabyte |
| CHIPSET TYPE | LGA 1851 |
| PROCESSOR TYPE | Intel Core Ultra processors (Series 2) |
| SOCET | LGA 1851 |
| RAM SUPPORT | 4 × DDR5 DIMM, dual channel, up to 256 GB; 9500 MT/s (OC), ECC/non ECC, XMP support |
| RAM SLOT | 4 |
| WIFI,BLUETOOTH | yes |
Add to cart
Buy Now
-
Delivery Return
Returns Policy
Â
- Return Window: Within 24 hours of delivery for manufacturing defects or product discrepancies.
- Condition: Product must be in original packaging with the company seal intact.
- No Returns Accepted: For physically damaged, mishandled, or tampered products.
All returns must align with our refund policy.
Unboxing Video Guidelines
- Required: An unboxing video is mandatory for any claims.
- Procedure:
- Inspect the package before accepting it.
- Record the shipping label and all sides of the package.
- Show the product condition on video after unboxing.
In case of any issue, email the video to systemsettings.in.support@gmail.com.
-
Size Guide
Size Guide
-
Ask a Question
Ask a Question
GIGABYTE Z890 AERO D Motherboard Supports Intel Core Ultra CPUs 16+1+2 phases VRM
Original price was: ₹84,000.00.₹55,999.00Current price is: ₹55,999.00.
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Model | Z890 AERO D |
| Form Factor | E ATX (30.5 cm × 28.5 cm) |
| Chipset | Intel® Z890 Express |
| CPU Socket | LGA 1851 (Socket V1) |
| Power Delivery (VRM) | 16 + 1 + 2 digital twin VRM with 80 A Smart Power Stages, 2× Copper PCB, premium chokes & caps |
| Memory Support | 4 × DDR5 DIMM, dual channel, up to 256 GB; 9500 MT/s (OC), ECC/non ECC, XMP support |
| Expansion Slots | 1 × PCIe 5.0 x16 (x16); 1 × PCIe 5.0 x16 (x8 mode); 1 × PCIe 4.0 x4 |
| M.2 Storage | 4 M.2 slots: 1 × PCIe 5.0 x4, 3 × PCIe 4.0 x4; all support 2280–22110 sizes |
| SATA Ports | 4 × SATA 6 Gb/s (via chipset/ASM1164); RAID 0/1/5/10 support |
| Chipset Storage | Supports RAID 0/1/5/10 on both NVMe & SATA |

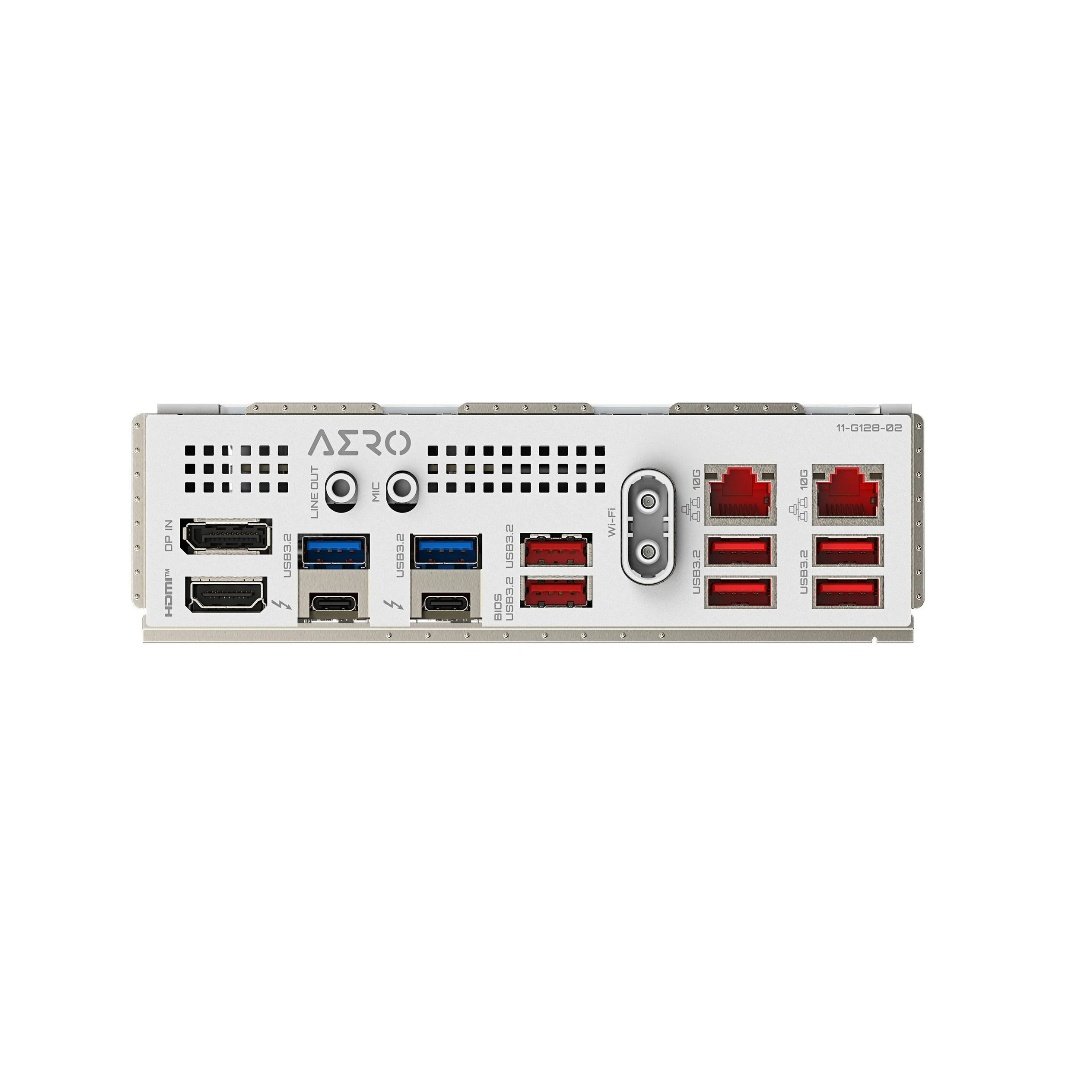

| USB Ports – Rear | 2 × USB4/Thunderbolt 5 Type C, 1 × USB4/Thunderbolt 4 Type C, 6 × USB 3.2 Gen 2 Type A, 2 × USB 3.2 Gen 1 Type A |
| USB Headers | 1 × USB 3.2 Gen 2×2 Type C (front), multiple USB 3.2 Gen 2/1 and USB 2.0 internal headers |
| Display Outputs | 1 × HDMI, 1 × DisplayPort In |
| Thunderbolt/USB C Features | Dual Thunderbolt 5 ports supporting DP Alt mode, 60 W downstream power (VisionLINK) |
| Networking | Dual 10 GbE LAN (Marvell AQC113C); Intel® Wi Fi 7 BE200; Bluetooth 5.4; includes directional high gain antennas & Wi Fi EZ Plug |
| Audio | ESS ES9260 DAC (rear); Realtek ALC897 (front panel); 2-channel HD audio |
| VRM Cooling | VRM Thermal Armor Advanced (heatpipe + 5 W/mk pad + heatsinks) |
| M.2 Cooling | M.2 Thermal Guard XL + Extended heatsinks, EZ Latch Click design |
| DIY Features | Integrated IO shield, PCIe/M.2 EZ Latch Plus, Q Flash Plus, onboard power/reset buttons, EZ Debug LEDs |
| BIOS | 256 Mbit AMI UEFI BIOS with Q Flash / Q Flash Plus; Smart Backup |
| Software Utilities | GIGABYTE Control Center, LAN Manager, Norton OEM security |
| Operating System Support | Windows 11 64 bit (24H2 and later) |
| Included Accessories | Thermal pads (4×), DP cable, Wi Fi antennas, SATA cables, noise-detection cable, thermistor cables, G-Connector |
| Warranty | 3 year manufacturer warranty |
| Weight | 2 kg |
|---|---|
| Dimensions | 37.44 × 33.42 × 9.5 cm |
